latest fire truck door 18mm manufacturers for Trialer

Latest fire truck door 18mm manufacturers for Trialer

Specifications:

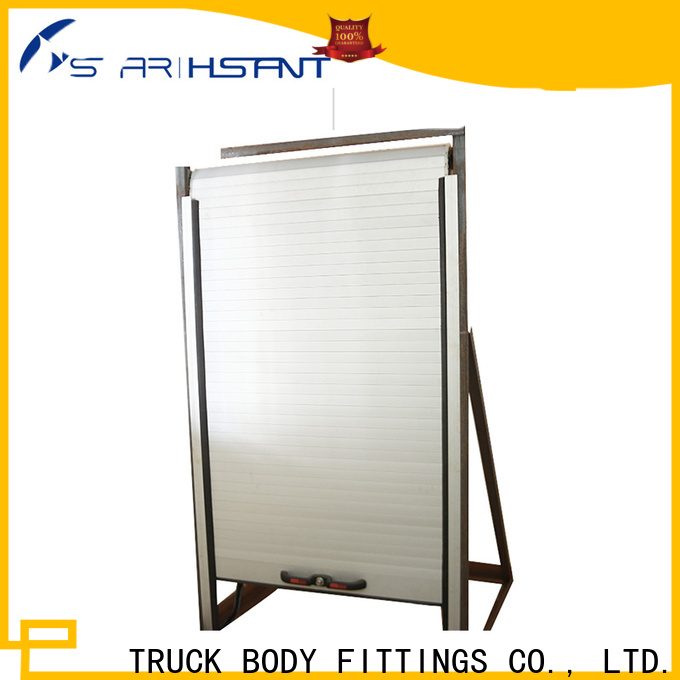

Aluminum alloy rolling door of fire truck
Part no.:
104000
Matetial:
ALU
Weight:
15kg/M2
Pcs / Carton:
1 sets
Carton Size:
W OF DOOR(MM)*W250MM*H250MM
MOQ:
1 sets
Payment Item:
T/T, west union, PAYPAL, alipay
Delivery Date:
10-25 days
Port Of Loading:
Shanghai
Surface Treatment:
Oxidation (color customizable Need moq)
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Product Information of latest fire truck door 18mm manufacturers for Trialer

Product Feature


◆ Suitable height of door: 0.5M-4M.
◆ Suitable width of door: 0.5M-5M.
◆ Working environment temperature: -40℃---+60℃.
◆ Handle type: Tube typeORhandle type.
◆ Material technology: Extrusion.
◆ Slider design process: Since the spring type.
◆ Curtain piece design process: Double back arc.
◆ Connection plate design process: Card button.
◆ Opening mode: You can choose any of the five ways to open it.
◆ Matching roller specifications: 80 mmx1 Φ. 2 mm.
◆ Installation method: Fasten with a bolt OR rivet.
latest fire truck door 18mm manufacturers for Trialer-1
Product Display


latest fire truck door 18mm manufacturers for Trialer-2
latest fire truck door 18mm manufacturers for Trialer-3
latest fire truck door 18mm manufacturers for Trialer-4
latest fire truck door 18mm manufacturers for Trialer-5


Suggestions For Door Installation


latest fire truck door 18mm manufacturers for Trialer-6
1) Confirm the whole frame of width and height is consistent with the drawings, a diagonal dimension is uniform around the mouth of the cave.
2) In the condition that the size right to start the installation shutter connection plate.
3) When installing a connection plate to ensure about connection plate is in the same horizontal plane and vertical plane.
4) Around a fixed connection plate respectively.
5) The card button u-shaped seat in a connection plate.
6) Puts drum u-shaped seat.
7) Connect the ribbon with the curtain on a cylinder.
8) Connection, after put down gently sliding door, door lock cylinder torsion pin will fall off.9) Clip the door into the left and right side guide rail and fix it on the frame.


Drawing


latest fire truck door 18mm manufacturers for Trialer-7
latest fire truck door 18mm manufacturers for Trialer-8
latest fire truck door 18mm manufacturers for Trialer-9


Remind


latest fire truck door 18mm manufacturers for Trialer-10
Remind

The thickness of the door frame on the upper end of the hole height should not be greater than 10MM!
Due to different measurement methods, the measurement is allowed to be within 1mm-3mm error.
Due to the different colors displayed by different computers, the color of the actual product may be slightly different from the above image, affected by the physical object, thank you for your understanding.


Product Details


latest fire truck door 18mm manufacturers for Trialer-11
latest fire truck door 18mm manufacturers for Trialer-12
latest fire truck door 18mm manufacturers for Trialer-13
latest fire truck door 18mm manufacturers for Trialer-14
