custom metal roll up door 35mm104000 company for Tarpaulin

Product Feature

◆ Suitable height of door: 0.5M-4M.

◆ Suitable width of door: 0.5M-5M.
◆ Working environment temperature: -40℃---+60℃.
◆ Handle type: Tube typeORhandle type.
◆ Material technology: Extrusion.
◆ Slider design process: Since the spring type.
◆ Curtain piece design process: Double back arc.
◆ Connection plate design process: Card button.
◆ Opening mode: You can choose any of the five ways to open it.
◆ Matching roller specifications: 80 mmx1 Φ. 2 mm.
◆ Installation method: Fasten with a bolt OR rivet.

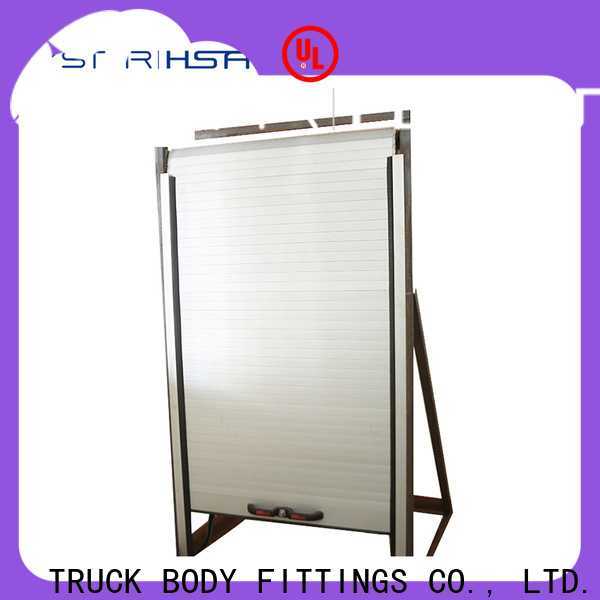

TBF 35mm104000 metal roll up door company for Tarpaulin-1

Product Display

TBF 35mm104000 metal roll up door company for Tarpaulin-2

TBF 35mm104000 metal roll up door company for Tarpaulin-3

TBF 35mm104000 metal roll up door company for Tarpaulin-4

TBF 35mm104000 metal roll up door company for Tarpaulin-5

Suggestions For Door Installation

TBF 35mm104000 metal roll up door company for Tarpaulin-6

1) Confirm the whole frame of width and height is consistent with the drawings, a diagonal dimension is uniform around the mouth of the cave.
2) In the condition that the size right to start the installation shutter connection plate.
3) When installing a connection plate to ensure about connection plate is in the same horizontal plane and vertical plane.
4) Around a fixed connection plate respectively.
5) The card button u-shaped seat in a connection plate.
6) Puts drum u-shaped seat.
7) Connect the ribbon with the curtain on a cylinder.
8) Connection, after put down gently sliding door, door lock cylinder torsion pin will fall off.9) Clip the door into the left and right side guide rail and fix it on the frame.

Drawing

TBF 35mm104000 metal roll up door company for Tarpaulin-7

TBF 35mm104000 metal roll up door company for Tarpaulin-8

TBF 35mm104000 metal roll up door company for Tarpaulin-9

Remind

TBF 35mm104000 metal roll up door company for Tarpaulin-10

Remind

The thickness of the door frame on the upper end of the hole height should not be greater than 10MM!
Due to different measurement methods, the measurement is allowed to be within 1mm-3mm error.
Due to the different colors displayed by different computers, the color of the actual product may be slightly different from the above image, affected by the physical object, thank you for your understanding.

Product Details

TBF 35mm104000 metal roll up door company for Tarpaulin-11

TBF 35mm104000 metal roll up door company for Tarpaulin-12

TBF 35mm104000 metal roll up door company for Tarpaulin-13

TBF 35mm104000 metal roll up door company for Tarpaulin-14

s******k

All the raw materials of TBF metal roll up door are in line with international standards. The curing system of the product is of high performance

x******m

The design of TBF metal roll up door is aspired by the latest market trends. It is highly automatic and requires little manpower

d******g

TBF metal roll up door is provided by a strong R&D team with technical improvements. The product can work for quite a long time

u******e

During the design of TBF metal roll up door, the design team devotes themselves in research and overcomes some of the product defects that can not be disposed of in the current market. The curing system of the product is of high performance

h******h

The appealing design of TBF metal roll up door comes from a team of talented professionals. The product can run super smoothly and noiselessly

z******i

The product is highly reliable. All its components and materials are either FDA/UL/CE approved to ensure premium quality. The product can work for quite a long time
