roll up door parts 35mm104000 manufacturers for Tarpaulin

Product Feature

◆ Suitable height of door: 0.5M-4M.

◆ Suitable width of door: 0.5M-5M.
◆ Working environment temperature: -40℃---+60℃.
◆ Handle type: Tube typeORhandle type.
◆ Material technology: Extrusion.
◆ Slider design process: Since the spring type.
◆ Curtain piece design process: Double back arc.
◆ Connection plate design process: Card button.
◆ Opening mode: You can choose any of the five ways to open it.
◆ Matching roller specifications: 80 mmx1 Φ. 2 mm.
◆ Installation method: Fasten with a bolt OR rivet.

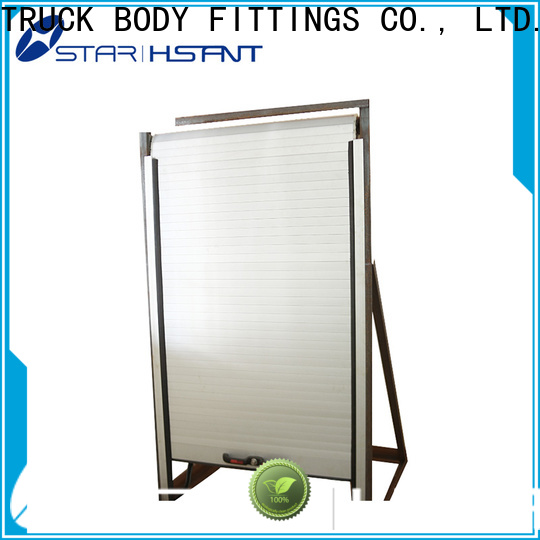

TBF 35mm104000 roll up door parts manufacturers for Tarpaulin-1

Product Display

TBF 35mm104000 roll up door parts manufacturers for Tarpaulin-2

TBF 35mm104000 roll up door parts manufacturers for Tarpaulin-3

TBF 35mm104000 roll up door parts manufacturers for Tarpaulin-4

TBF 35mm104000 roll up door parts manufacturers for Tarpaulin-5

Suggestions For Door Installation

TBF 35mm104000 roll up door parts manufacturers for Tarpaulin-6

1) Confirm the whole frame of width and height is consistent with the drawings, a diagonal dimension is uniform around the mouth of the cave.
2) In the condition that the size right to start the installation shutter connection plate.
3) When installing a connection plate to ensure about connection plate is in the same horizontal plane and vertical plane.
4) Around a fixed connection plate respectively.
5) The card button u-shaped seat in a connection plate.
6) Puts drum u-shaped seat.
7) Connect the ribbon with the curtain on a cylinder.
8) Connection, after put down gently sliding door, door lock cylinder torsion pin will fall off.9) Clip the door into the left and right side guide rail and fix it on the frame.

Drawing

TBF 35mm104000 roll up door parts manufacturers for Tarpaulin-7

TBF 35mm104000 roll up door parts manufacturers for Tarpaulin-8

TBF 35mm104000 roll up door parts manufacturers for Tarpaulin-9

Remind

TBF 35mm104000 roll up door parts manufacturers for Tarpaulin-10

Remind

The thickness of the door frame on the upper end of the hole height should not be greater than 10MM!
Due to different measurement methods, the measurement is allowed to be within 1mm-3mm error.
Due to the different colors displayed by different computers, the color of the actual product may be slightly different from the above image, affected by the physical object, thank you for your understanding.

Product Details

TBF 35mm104000 roll up door parts manufacturers for Tarpaulin-11

TBF 35mm104000 roll up door parts manufacturers for Tarpaulin-12

TBF 35mm104000 roll up door parts manufacturers for Tarpaulin-13

TBF 35mm104000 roll up door parts manufacturers for Tarpaulin-14

n******l

roll up door parts The material is carefully selected, thick, fine workmanship, high quality, good corrosion resistance and durability, flexible and strong, and durable.

o******p

roll up door parts High-precision voltage is selected, the output power of the circuit is stable and continuous, and when the circuit is overheated, it can automatically turn on the protection mode and automatically cut off the power to ensure safe and reliable use.

g******a

roll up door parts The thoughtful groove design is adopted, which not only protects the water pipe, but also prevents the water pressure from being lowered due to direct bending of the water pipe, and the water filling is smooth and free.

k******r

roll up door parts Exquisite material selection, exquisite workmanship, thick texture, cute shape, stable quality, excellent quality, beautiful and practical, interesting and fun.

k******d

roll up door parts Exquisite appearance, classic pattern and graphic decoration, nostalgic overall tone, coupled with special treatment and fine workmanship, the finished product shows retro and noble characteristics, and the classic is more attractive.

x******v

Under the strict supervision of our professionals, its quality is guaranteed. It has a small volume and a simple structure
