best aluminium roller shutter fire for Tarpaulin

Product Feature

◆ Suitable height of door: 0.3M-3M.

◆ Suitable width of door: 0.3M-3M.
◆ Working environment temperature: -20℃---+50℃.
◆ Handle type: Unfold Install OR concealed installation.
◆ Material technology: Extrusion.
◆ Slider design process: Double layer waterproof design/snap type.
◆ Curtain piece design process: You can choose any of the five ways to open it.
◆ Connection plate design process: Fasten with a bolt OR rivet.

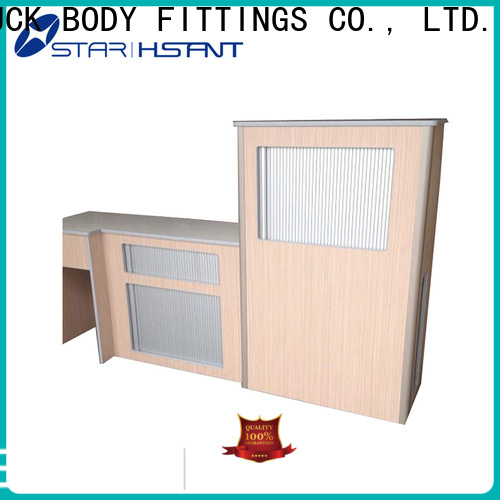

TBF best aluminium roller shutter for Tarpaulin-1

Product Display

TBF best aluminium roller shutter for Tarpaulin-2

TBF best aluminium roller shutter for Tarpaulin-3

TBF best aluminium roller shutter for Tarpaulin-4

TBF best aluminium roller shutter for Tarpaulin-5

Suggestions For Door Installation

TBF best aluminium roller shutter for Tarpaulin-6

1) Confirm the whole frame of width and height is consistent with the drawings, a diagonal dimension is uniform around the mouth of the cave.
2) In the condition that the size right to start the installation shutter connection plate.
3) When installing a connection plate to ensure about connection plate is in the same horizontal plane and vertical plane.
4) Around a fixed connection plate respectively.
5) The card button u-shaped seat in a connection plate.
6) Puts drum u-shaped seat.
7) Connect the ribbon with the curtain on a cylinder.
8) Connection, after put down gently sliding door, door lock cylinder torsion pin will fall off.

Remind

TBF best aluminium roller shutter for Tarpaulin-7

Remind

The thickness of the door frame on the upper end of the hole height should not be greater than 10MM!
Due to different measurement methods, the measurement is allowed to be within 1mm-3mm error.
Due to the different colors displayed by different computers, the color of the actual product may be slightly different from the above image, affected by the physical object, thank you for your understanding.

Drawing

TBF best aluminium roller shutter for Tarpaulin-8

TBF best aluminium roller shutter for Tarpaulin-9

TBF best aluminium roller shutter for Tarpaulin-10

TBF best aluminium roller shutter for Tarpaulin-11

Product Details

TBF best aluminium roller shutter for Tarpaulin-12

TBF best aluminium roller shutter for Tarpaulin-13

TBF best aluminium roller shutter for Tarpaulin-14
