latest truck roll up door vanrefrigerated company for Van

Product Feature

◆ Suitable height of door: 1M-3M.

◆ Suitable width of door: 1.2M-3M.
◆ Working environment temperature: -40℃---+60℃.

◆ Handle type: Rotary lock.
◆ Material technology: Laminate/extrude.
◆ Slider design process: Retractable pulley.
◆ Curtain piece design process: Occlusal type.
◆ Connection plate design process: Splicing type.
◆ Opening mode: Horizontal pushing type.
◆ Matching cylinder specifications: Φ55MMX1200MM.
◆ Installation method: Fasten with a bolt OR rivet.

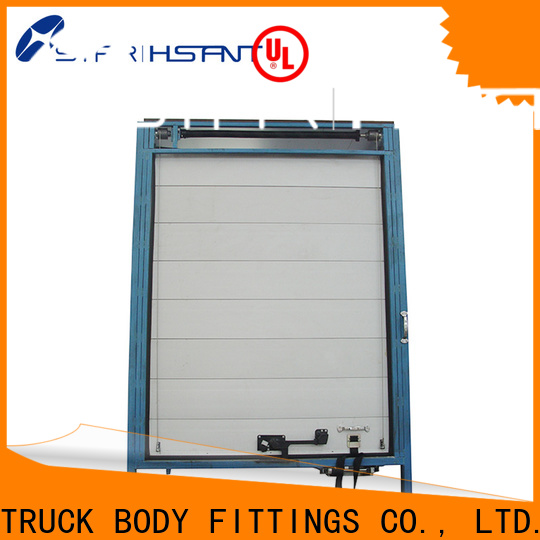

TBF vanrefrigerated truck roll up door company for Van-1

Product Display

TBF vanrefrigerated truck roll up door company for Van-2

TBF vanrefrigerated truck roll up door company for Van-3

TBF vanrefrigerated truck roll up door company for Van-4

TBF vanrefrigerated truck roll up door company for Van-5

Suggestions For Door Installation

TBF vanrefrigerated truck roll up door company for Van-6

1) Confirm the whole frame of width and height is consistent with the drawings, a diagonal dimension is uniform around the mouth of the cave.
2) In the condition that the size right to start the installation shutter connection plate.
3) When installing a connection plate to ensure about connection plate is in the same horizontal plane and vertical plane.
4) Around a fixed connection plate respectively.
5) The card button u-shaped seat in a connection plate.
6) Puts drum u-shaped seat.
7) Connect the ribbon with the curtain on a cylinder.
8) Connection, after put down gently sliding door, door lock cylinder torsion pin will fall off.

Remind

TBF vanrefrigerated truck roll up door company for Van-7

Remind

The thickness of the door frame on the upper end of the hole height should not be greater than 10MM!
Due to different measurement methods, the measurement is allowed to be within 1mm-3mm error.
Due to the different colors displayed by different computers, the color of the actual product may be slightly different from the above image, affected by the physical object, thank you for your understanding.

Product Details

TBF vanrefrigerated truck roll up door company for Van-8

TBF vanrefrigerated truck roll up door company for Van-9

TBF vanrefrigerated truck roll up door company for Van-10

TBF vanrefrigerated truck roll up door company for Van-11

TBF vanrefrigerated truck roll up door company for Van-12

TBF vanrefrigerated truck roll up door company for Van-13

l******v

TBF truck roll up door has passed a series of comprehensive quality-control tests to ensure that it does not contain harmful substances at all.

w******g

The production of TBF truck roll up door includes the following stages: concept development, detailed mechanical design&control systems design, manufacture, and final commissioning.

o******a

In the designing of TBF truck roll up door, various factors have been taken into consideration. They are room layout, space style, the function of the space, and the whole space integration.

b******w

The development of TBF truck roll up door uses many disciplines. They include numerical control technology, dynamic machinery, mechanical engineering and technology, tribology, thermodynamics, etc.

h******z

TBF truck roll up door is professionally designed. Its design takes into account many structural elements such as mechanical structures, spindle bearings, control and operating structures.

q******a

The truck roll up door structure adopts humanized design, thus it is truck roll up door.
